ASME B18.2.3.3M Heavy Hex Structural Screws (Metric) Dimensions

ASME B18.2.3.3M Heavy Hex Structural Screw (Metric) Dimensions

Metric Dimensions for Heavy Hex Structural Bolts

ASME B18.2.3.3M Standard specifies the dimensions and requirements for metric heavy hex structural bolts, commonly used in structural steel connections and high-strength applications. It includes details on bolt geometry, thread specifications, and tolerance limits to ensure structural integrity and reliability. This page provides comprehensive ASME B18.2.3.3M Dimensions, including metric size charts and engineering data.

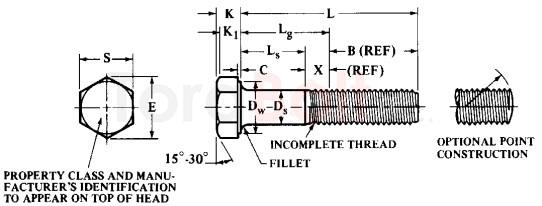

ASME B18.2.3.3M Heavy Hex Structural Screw Dimensions

Nominal Dia., D , and Thread Pitch	Body Diameter.,D _s	Width Across Flats,S	Width Across Corners, E	Head Height, K	Wrenching Height, K ₁	Washer Face Thickness,C	Washer FaceDia.,D _w
M12 × 1.75	12	11.73	21	20.67	24.25	23.35	7.76	7.24	5.2	0.6	0.3	19.6
M14 × 2	14	13.73	24	23.67	27.71	26.75	9.09	8.51	6.2	0.6	0.3	22.5
M16 × 2	16	15.73	27	26.67	31.18	30.14	10.32	9.68	7	0.8	0.4	25.3
M20 × 2.5	20	19.67	34	33	39.26	37.29	12.88	12.12	8.8	0.8	0.4	31.4
M24 × 3	24	23.67	41	40	47.34	45.2	15.44	14.56	10.5	0.8	0.4	38
M30 × 3.5	30	29.67	50	49	57.74	55.37	19.48	17.92	13.1	0.8	0.4	46.6
M36 × 4	36	35.61	60	58.8	69.28	66.44	23.38	21.72	15.8	0.8	0.4	55.9
All dimensions are in millimeters. Basic thread lengths, B, are the same as given in . Transition thread length, X, includes the length of incomplete threads and tolerances on grip gaging length and body length. It is intended for calculation purposes. For additional manufacturing and acceptance specifications, reference should be made to the Standard.
