ASME B18.31.2 Inch Series Threaded Rods Dimensions
Inch Series Threaded Rod Dimensions and Length Standards
ASME B18.31.2 standard specifies the dimensions and requirements for inch series threaded rods, widely used in construction, piping, and mechanical systems. It includes details on thread specifications, rod lengths, and tolerances. This page provides accurate ASME B18.31.2 dimensions, along with size charts and engineering specifications for practical use.

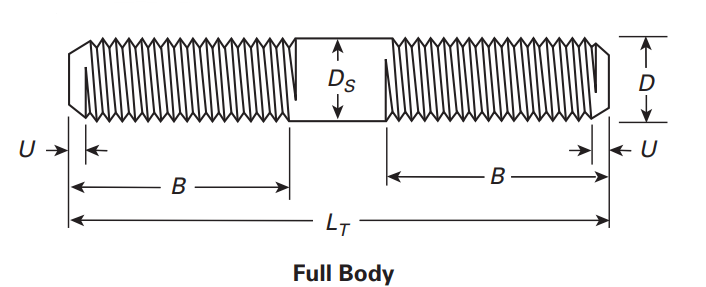

ASME B18.31.2 Inch Series Threaded Rods Dimensions (Inch)
| Nominal Size |
Diameter, D |
Nut End Minimum Full Thread
Length, Bmin |
Minimum Body Diameter, DS | ||||
|---|---|---|---|---|---|---|---|
| L ≤ 10 | 10 < L ≤ 16 | L > 16 | UNC and NC-5 HF Threads |
UNF Threads |
8UN Threads |
||
| ¼ | 0.2500 | 0.750 | 1.000 | 1.500 | 0.241 | 0.243 | … |
| 5/16 | 0.3125 | 0.875 | 1.125 | 1.625 | 0.303 | 0.304 | … |
| 3/8 | 0.3750 | 1.000 | 1.250 | 1.750 | 0.364 | 0.367 | … |
| 7/16 | 0.4375 | 1.125 | 1.375 | 1.875 | 0.426 | 0.428 | … |
| ½ | 0.5000 | 1.250 | 1.500 | 2.000 | 0.488 | 0.491 | … |
| 9/16 | 0.5625 | 1.375 | 1.625 | 2.125 | 0.550 | 0.552 | … |
| 5/8 | 0.6250 | 1.500 | 1.750 | 2.250 | 0.611 | 0.615 | … |
| ¾ | 0.7500 | 1.750 | 2.000 | 2.500 | 0.735 | 0.739 | … |
| 7/8 | 0.8750 | 2.000 | 2.250 | 2.750 | 0.859 | 0.863 | … |
| 1 | 1.0000 | 2.250 | 2.500 | 3.000 | 0.983 | 0.987 | … |
| 1⅛ | 1.1250 | 2.500 | 2.750 | 3.250 | 1.106 | 1.112 | 1.108 |
| 1¼ | 1.2500 | 2.750 | 3.000 | 3.500 | 1.231 | 1.237 | 1.233 |
| 1⅜ | 1.3750 | 3.000 | 3.250 | 3.750 | 1.354 | 1.362 | 1.358 |
| 1½ | 1.5000 | 3.250 | 3.500 | 4.000 | 1.479 | 1.487 | 1.483 |
| 1⅝ | 1.6250 | 3.500 | 3.750 | 4.250 | … | … | 1.608 |
| 1¾ | 1.7500 | 3.750 | 4.000 | 4.500 | 1.727 | … | 1.733 |
| 1⅞ | 1.8750 | 4.000 | 4.250 | 4.750 | … | … | 1.858 |
| 2 | 2.0000 | 4.250 | 4.500 | 5.000 | 1.975 | … | 1.983 |
| 2¼ | 2.2500 | 4.750 | 5.000 | 5.500 | 2.225 | … | 2.233 |
| 2½ | 2.5000 | 5.250 | 5.500 | 6.000 | 2.473 | … | 2.483 |
| 2¾ | 2.7500 | 5.750 | 6.000 | 6.500 | 2.723 | … | 2.733 |
| 3 | 3.0000 | ... | 6.500 | 7.000 | 2.973 | … | 2.982 |
| 3¼ | 3.2500 | ... | 7.000 | 7.500 | 3.223 | … | 3.232 |
| 3½ | 3.5000 | ... | 7.500 | 8.000 | 3.473 | … | 3.482 |
| 3¾ | 3.7500 | ... | 8.000 | 8.500 | 3.723 | … | 3.732 |
| 4 | 4.0000 | ... | 8.500 | 9.000 | 3.973 | … | 3.982 |
ASME B18.31.2 Inch Series Threaded Rods Length Tolerances (Inch)
| Range, LT | Tolerance |
|---|---|
| From ¾ through 2½ | ±0.04 |
| Over 2½ through 4 | ±0.08 |
| Over 4 through 8 | ±0.10 |
| Over 8 through 16 | ±0.12 |
| Over 16 | ±0.18 |
